Public workspaceImmunolabelling and clearing of intact, fixed rat spinal cord for visualization of neurons projecting to major pelvic ganglion

 Forked from Immunolabelling and clearing of intact spinal cord for visualization of lower urinary tract afferents
DOI
https://dx.doi.org/10.17504/protocols.io.n2bvj8bewgk5/v1
Immunolabelling and clearing of intact, fixed rat spinal cord for visualization of neurons projecting to major pelvic ganglion
  • John-Paul Fuller-Jackson1,
  • Peregrine B Osborne1,
  • Janet R Keast1
  • 1University of Melbourne
Janet R Keast
Icon indicating open access to content
QR code linking to this content
DOI: https://dx.doi.org/10.17504/protocols.io.n2bvj8bewgk5/v1
Protocol Citation: John-Paul Fuller-Jackson, Peregrine B Osborne, Janet R Keast 2025. Immunolabelling and clearing of intact, fixed rat spinal cord for visualization of neurons projecting to major pelvic ganglion. protocols.io https://dx.doi.org/10.17504/protocols.io.n2bvj8bewgk5/v1
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License,  which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
Created: March 05, 2023
Last Modified: October 08, 2025
Protocol Integer ID: 78163
Keywords: neural tracing, retrograde tracing, clearing, idisco, light sheet microscopy, spinal cord, pelvic ganglion, motor neuron, preganglionic neuron, cholinergic neuron, rat spinal cord for visualization, imaging of spinal cord, sacral preganglionic neurons in the spinal cord, somatic motoneurons within the spinal cord, sacral preganglionic neuron, major pelvic ganglion, spinal cord, preganglionic autonomic neuron, neuron, choline acetyltransferase immunoreactivity, immunolabelling, somatic motoneuron
Funders Acknowledgements:
NIH SPARC
Grant ID: OT2OD023872
Abstract

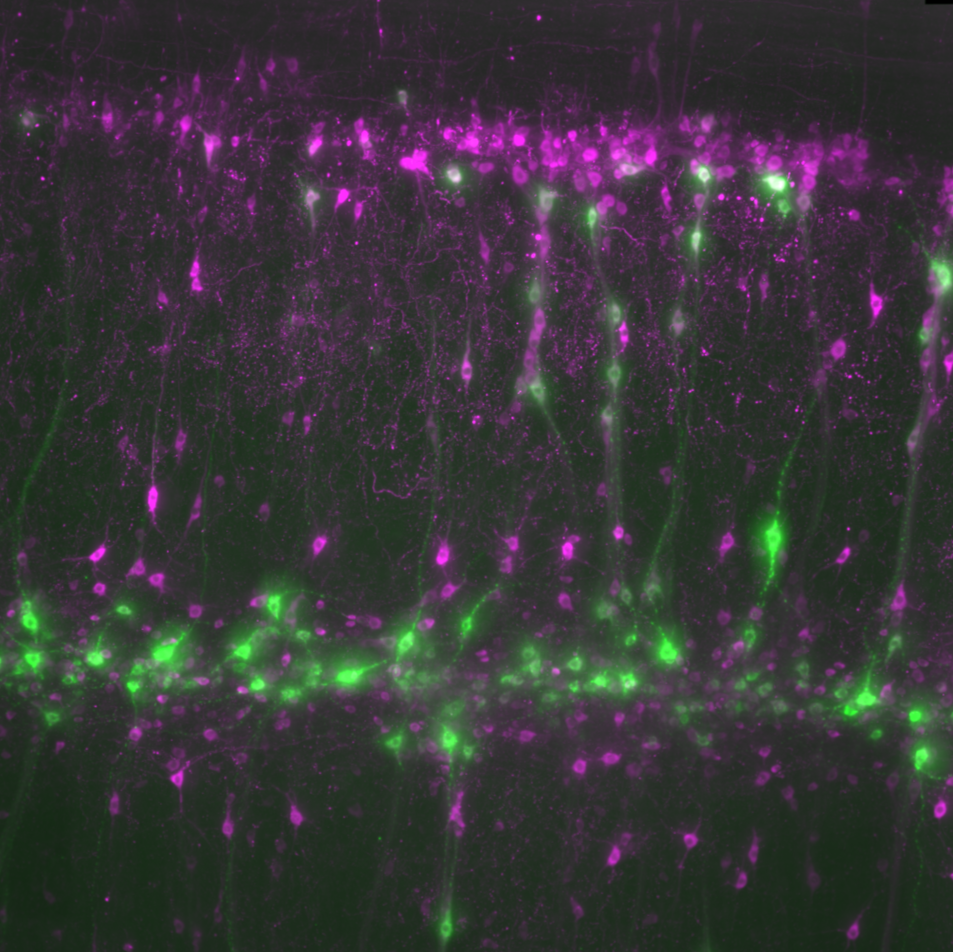

The whole-mount immunolabeling and clearing method (iDISCO) was used to visualize cholera toxin subunit B (CTB)-labelled lumbar and sacral preganglionic neurons in the spinal cord of the adult rat. Imaging of spinal cord was performed on a light sheet microscope with a 2x and a 12x lens. Choline acetyltransferase immunoreactivity identified preganglionic autonomic neurons and somatic motoneurons within the spinal cord.
Materials
Materials
ReagentMethanolMerck MilliporeSigma (Sigma-Aldrich)Catalog #M3641
ReagentDichloromethaneMerck MilliporeSigma (Sigma-Aldrich)Catalog #320269
ReagentDibenzyl etherMerck MilliporeSigma (Sigma-Aldrich)Catalog #108014
ReagentEthyl cinnamateMerck MilliporeSigma (Sigma-Aldrich)Catalog #112372
Reagent1X Dulbecco’s Phosphate Buffered Saline (DPBS) Thermo Fisher ScientificCatalog #14190094
ReagentGelatin from porcine skinMerck MilliporeSigma (Sigma-Aldrich)Catalog #G1890
ReagentHydrogen peroxide 30%Merck Millipore (EMD Millipore)Catalog #822287.1000
ReagentSaponinMerck MilliporeSigma (Sigma-Aldrich)Catalog #S4521
ReagentThimerosalMerck MilliporeSigma (Sigma-Aldrich)Catalog #T5125
ReagentTriton X-100Merck MilliporeSigma (Sigma-Aldrich)Catalog #T8787-50ML
ReagentRabbit anti-cholera toxin antibodyMerck MilliporeSigma (Sigma-Aldrich)Catalog #C3062
ReagentGoat anti-choline acetyltransferase antibodyMerck Millipore (EMD Millipore)Catalog #AB144P
ReagentCy3 Donkey anti-rabbit IgGJackson ImmunoResearch Laboratories, Inc.Catalog #711-165-152
ReagentAF647 donkey anti-goat IgGJackson ImmunoResearch Laboratories, Inc.Catalog #705-605-147
Equipment
Equipment
Ultramicroscope II
NAME
Light sheet microscope
TYPE
Miltenyi Biotec
BRAND
NA
SKU
https://www.miltenyibiotec.com/AU-en/products/ultramicroscope-ii.html
LINK

Solutions
PBS: phosphate-buffered saline, 0.1 M, pH 7.2
DPBS: 1x Dulbecco's phosphate-buffered saline
DPBS-T: 1x Dulbecco's phosphate-buffered saline containing 0.5% Triton X100
DPBSG-T: 1x Dulbecco's phosphate-buffered saline containing 0.2% gelatin, 0.5% Triton X-100 and 0.01% thimerosal
Primary antibodies

ABCDE
AbbreviationSynonymRRIDHost speciesDilution
ChATCholine acetyltransferaseAB_11214092Goat1:500
CTBCholera toxin subunit BAB_258833Rabbit1:3000

Secondary antibodies

ABCD
Tag-antibodyHost speciesRRIDDilution
AF647 anti-goatDonkeyAB_23404371:2000
Cy3 anti-rabbitDonkeyAB_23074431:2000

Troubleshooting
Spinal cord preparation
30m
While immersed in phosphate buffered-saline (PBS), pH 7.2, trim nerve roots of paraformaldehyde-fixed spinal cord to within approximately 2 mm of the spinal cord surface to facilitate the identification of segments later, following imaging. Segments of particular interest are T13-L2 for the lumbar preganglionic neurons, and L6-S1 for the caudal preganglionic neurons.
Bleaching
1d
Wash samples in 1x Dulbecco’s PBS (DPBS)(6 x 15 mins).
Dehydrate samples in a series of methanol in DPBS dilutions while on rotation at 12 rpm:
  1. 50% methanol in DPBS (1.5 h)
  2. 80% methanol in DPBS (1.5 h)
  3. 100% methanol (1.5 h)
Bleach samples overnight in 6% hydrogen peroxide in methanol at 4°C, protected from light.
Blocking
2d
Rehydrate samples in a series of methanol in DPBS dilutions while on rotation at 12 rpm:
  1. 100% methanol (2 x 1.5 h)
  2. 80% methanol in DPBS (1.5 h)
  3. 50% methanol in DPBS (1.5 h)
  4. DPBS (1.5 h)
Incubate samples in DPBS containing 0.2% gelatin, 0.5% Triton X-100 and 0.01% thimerosal (DPBSG-T) for 36 h while on rotation at 12 rpm
Primary antibody incubation
1w 3d
Incubate samples in primary antibody solution containing DPBSG-T with 0.1% saponin for 10 days at 37°C with agitation. Volume of solution need only be sufficient to cover the sample.
Secondary antibody incubation
5d
Wash spinal cords in 1x DPBS with 0.5% Triton X-100 (DPBST) (6 x 15 mins).
Incubate samples in secondary antibody solution containing DPBSG-T with 0.1% Saponin for 4 days at 37°C with agitation. Volume of solution need only be sufficient to cover the sample.
Dehydration and delipidation
1d 8h
Wash spinal cords in DPBST (6 x 15 mins).
Dehydrate spinal cords in a series of methanol in DPBS dilutions while on rotation at 12 rpm:
  1. 20% methanol in DPBS (1 h)
  2. 40% methanol in DPBS (1 h)
  3. 60% methanol in DPBS (1 h)
  4. 80% methanol in DPBS (1h)
  5. 100% methanol (2 x 1 h)
Incubate samples in a solution of 2/3 dichloromethane and 1/3 methanol overnight on rotation. Ensure that samples sink to the bottom of the vial at the end of this step, otherwise continue incubation in freshly made solution.
Incubate samples in 100% dichloromethane for 30 mins while on rotation at 12 rpm. Repeat this step until samples sink.
Clearing
2h
Incubate samples in dibenzyl ether until the samples have become clear. Ensure each vial is completely filled with dibenzyl ether to minimize sample oxidation as a result of large amounts of air in the vial. This process should not take longer than 2 h.
Storage
Store cleared samples in fresh dibenzyl ether. Keep away from light (wrap in foil and store in an opaque container).
Light sheet microscopy
Prior to visualization on a light sheet microscope, samples should be transferred into ethyl cinnamate, at least 3 h prior.
Remove sample from ethyl cinnamate and gently dry on a tissue. Affix sample to plastic mount using the minimum amount of super glue required. Tips:
  • Avoid adhering the sample to the base via any region of the sample that is of interest; both the super glue and proximity to the plastic will reduce imaging quality in that area.
  • Mount the sample perfectly in the middle; the light sheet microscope stage has limited mobility, particularly at higher magnifications.
  • Orientate the sample such that the thinnest plane of the sample is perpendicular to the light sheet beams. The further light has to travel through a sample, the poorer the image quality.
  • Orientate the sample so that the region of interest is facing as close to the lens as possible.
In this protocol, the spinal cord was mounted perpendicular to the light sheet beams, with the dorsal horn facing the lens, and the ventral side of L5 or T13 (depending on sample chosen) being the point of adherence to the mounting platform.
In order to visualize the axons and dendrites of preganglionic neurons, use the highest magnification lens available on the light sheet microscope.
For example, a 12x lens is adequate for dendrite visualization.
Look for cholera toxin subunit B labelled projections extending from the intermediolateral nuclei to the dorsal commissural nucleus, as well as projections into the ventral horn of the grey matter.
Image acquisition was always performed with 2 µm z-step between each image. Where necessary, mosaic image acquisition was applied to capture the entire region of interest, with 10% overlap between image stacks.
Protocol references
Renier, N., Wu, Z., Simon, D.J., Yang, J., Ariel, P., Tessier-Lavigne, M., 2014. iDISCO: a simple, rapid method to immunolabel large tissue samples for volume imaging. Cell 159, 896–910. https://doi.org/10.1016/j.cell.2014.10.010 Belle, M., Godefroy, D., Couly, G., Malone, S.A., Collier, F., Giacobini, P., Chédotal, A., 2017. Tridimensional Visualization and Analysis of Early Human Development. Cell 169, 161-173.e12. https://doi.org/10.1016/j.cell.2017.03.008
