Fungal CTAB DNA Extraction
- Derreck Carter-House1,
- Jason Stajich1,
- Sarah Unruh1,
- Tania Kurbessoian1
- 1UC Riverside
- High molecular weight DNA extraction from all kingdoms
- Chytrid Fungi - Molecular and Genomic Techniques
Protocol Citation: Derreck Carter-House, Jason Stajich, Sarah Unruh, Tania Kurbessoian 2020. Fungal CTAB DNA Extraction . protocols.io https://dx.doi.org/10.17504/protocols.io.bhx8j7rw
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
We use this protocol and it's working
Created: June 26, 2020
Last Modified: November 01, 2020
Protocol Integer ID: 38624
Keywords: Fungi, high molecular weight DNA, CTAB, sequencing, fungal ctab dna extraction, ctab dna extraction method for filamentous fungi, ctab dna extraction method, filamentous fungi, extraction, high molecular weight genomic dna for genome sequencing, high molecular weight genomic dna, genome sequencing, genome
Abstract
This protocol is a CTAB DNA extraction method for filamentous fungi. Its purpose is to extract high molecular weight genomic DNA for genome sequencing.
Materials
MATERIALS
RNase A (10 mg/mL)Thermo Fisher ScientificCatalog #EN0531
PVPMerck MilliporeSigma (Sigma-Aldrich)
Sodium Acetate 3M, pH 5.2Thermo ScientificCatalog #R1181
potassium acetateMerck MilliporeSigma (Sigma-Aldrich)Catalog #P1190
Proteinase KMerck MilliporeSigma (Sigma-Aldrich)Catalog #P2308
BUFFER A: 0.35 M sorbitol; 0.1 M Tris-HCl, pH 9; 5 mM EDTA, pH 8
BUFFER B: 0.2 M Tris-HCl, pH 9; 50 mM EDTA, pH 8; 2 M NaCl; 2% CTAB
BUFFER C: 5% Sarkosyl (N-lauroylsarcosine sodium salt SIGMA L5125)
Polyvinylpyrrolidone (PVP) 1 %
Proteinase K (20 mg/ml)
Potassium Acetate 5M (KAc precipitate polysaccharides) pH 7.5
RNAse A (10 mg/ml)
(PCI) Phenol:Chloroform:Isoamyl alcohol (25:24:1)
(CI)Chloroform:Isoamyl alcohol (24:1)
Sodium Acetate (NaAc) 3M
Isopropanol 100%
Ethanol 70%
Protocol materials
RNase A (10 mg/mL)Thermo Fisher ScientificCatalog #EN0531
PVPMerck MilliporeSigma (Sigma-Aldrich)
Sodium Acetate 3M, pH 5.2Thermo ScientificCatalog #R1181
potassium acetateMerck MilliporeSigma (Sigma-Aldrich)Catalog #P1190
Proteinase KMerck MilliporeSigma (Sigma-Aldrich)Catalog #P2308
3M Sodium Acetate solution
Ethanol
Qubit™ dsDNA BR Assay KitThermo FisherCatalog #Q32853
Ethidium bromide [EB, EtBr]Bio Basic Inc.Catalog #EB0195.SIZE.1g
Troubleshooting
DNA Extraction steps
1m
Each tube of lysis buffer will be split in half so prepare one tube of lysis buffer for two samples.
Prepare Lysis Buffer by adding to each 2mL microcentrifuge tube 650 µL µL Buffer A, 650 µL µL Buffer B, 260 µL µL Buffer C, 175 µL µL 1 % (v/v) ( PVP, and 10 µL Proteinase K to microcentrifuge tube, mix, and then split equally into two 2 mL tubes.
Note
65 degree preheated solutions are much less viscous and allow for better mixing and equal splitting.
Place in hot plate and heat to 65 °C .
Heat a water bath to 37 °C for use in step 12 of this protocol
Take your liquid nitrogen, carefully and completely immerse the inside of your mortar.
Add your pestle inside the liquid to super cool it as well.
Add your fungi using a spatula cleaned with ethanol, make sure to grab only the fungi and as little agar as possible.
Grind fungal tissue in liquid nitrogen, add100 mg of tissue to each tube.
Note
Take your time on this step by slowly crushing the pieces of frozen fungi.
Make sure the mortar stays cold by carefully adding more liquid nitrogen. (Add a little at a time to ensure the crushed fungi remains in the mortar).
Grinding can take up to a minute, make sure to put enough force to get a fine powder.
1m
Incubate 00:30:00 at 65 °C mixing by inversion frequently (00:02:00 -00:05:00 min).
Note
Sometimes this step can generate gas due to heat expansion. As you are mixing the inversion, make sure to open the cap a bit to relieve the pressure.
Add 280 µL 5M Potassium Acetate to each tube, mix by inversion, incubate on ice for 00:05:00 .
Add 500 µL -700 µL (as much as the microcentrifuge tube can reasonably hold) Phenol:Choloform:Isoamyl alcohol, 25:24:1 (PCI), mix by inversion (>5 min) or vortex briefly (5-10 seconds) then incubate for 2 min at room temp (RT).
Note
DO NOT overfill the tube though. The phenol:chloroform:isoamyl alcohol can seep out of the edges and make it very slippery to hold. (Vortexing will be difficult).
If you have over-filled, tip out a bit of your solution onto a napkin and throw it away.
Spin at 6000 x g, 00:10:00
Take supernatant, transfer to new 2 ml microcentrifuge tube add equal volume Choloform:Isoamyl alcohol, 24:1 (CI) (usually about 1000ul).
Note
If you can, use cut pipette tips here to ensure DNA doesn't shred due to the force of pipetting through a small opening.
Cut pipette tips must be autoclaved before use.
Mix by inversion (00:05:00 at least ) then incubate at room temperature for 00:02:00
6000 x g, 00:10:00
Take supernatant (usually 700 µL ) and add it to a new 2 ml tube then:
a. RNAse treatment (2.5 µL RNAse A, 37 °C , 01:30:00 -02:00:00 )
b. Optional 1-2 additional CI washes
Note
Additional CI washes will result in cleaner DNA but will also have a lower yield.
Add 1/10 vol 3M Sodium Acetate, mix, add 1 vol Isopropanol
3M Sodium Acetate solution
Note
How to tell what 1/10 volume will be? Check the side of the eppendorf tube with your liquid inside. Is the line at 750uL? Divide this by 10 and that will be the volume of Sodium Acetate you add. (in this case 75uL)
Gently mix by inversion and incubate at Room temperature 00:05:00 , should start to see lots of DNA threads.
Note
This may look like a super sugary solution when you add water to it. It'll have ripples inside. Don't worry if this ends up dissolving after some time.
Equipment
Centrifuge
NAME
Benchtop Centrifuge
TYPE
Eppendorf
BRAND
5405000441
SKU
LINK
Any benchtop centrifuge will suffice
SPECIFICATIONS
3000 x g, 00:02:00 pour out the supernatant.
Note
A tip here is to align your tubes all in the same orientation. This will help with clear DNA or very low yields of DNA.
The next step requires you to pour our the supernatant. It's good to have a general idea of where the DNA is as you pour out.
Make sure to pour slowly and in one step (vs pouring a little and orienting the tube to stand, back and forth which essentially mixes your DNA and dislodges it from the edge of the tube).
Wash with 1 mL freshly prepared, cold 70 % (v/v)
Ethanol
Equipment
Centrifuge
NAME
Benchtop Centrifuge
TYPE
Eppendorf
BRAND
5405000441
SKU
LINK
Any benchtop centrifuge will suffice
SPECIFICATIONS
at 3000 x g, 00:02:00 , pipette out the
Ethanol
Remove as much EtOH as possible before drying.
Note
Pour ethanol out slowly and remove excess EtOH.
Dry pellet at RT for 00:10:00 - 00:15:00 and/or 65 °C for < 00:02:00 to dry any leftover ethanol OR if you have a vacuum chamber, place your samples there for 10-20 minutes under constant vacuum.
a. Resuspend in 50 µL - 100 µL TE (adjusted to 9 ) at 65 °C
If DNA still has high protein:
Optional CI wash add 600-800 TE buffer at 65 °C , resuspend DNA, add equal volume CI*, mix as directed in step 9, carry on protocol from there without the RNAse and CI steps.
Note
*For example, take 500-600 uL supernatant if added 800 uL CI
Assess DNA quality on NanoDrop.
DNA concentration may not be accurate but the absorbance values will determine the purity of the sample.

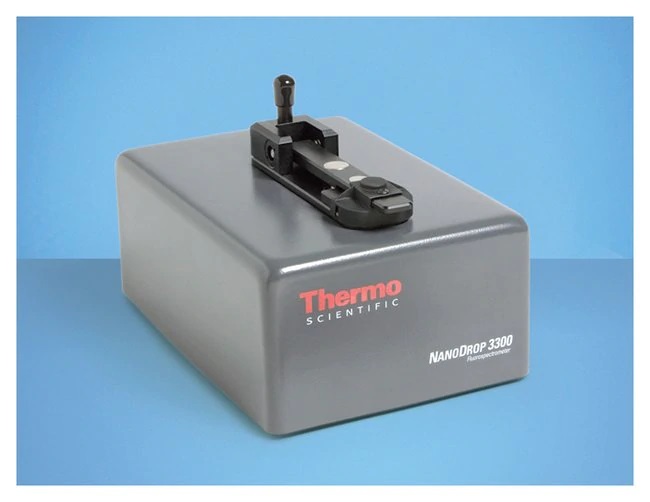

Equipment
NanoDrop™ 3300 Fluorospectrometer
NAME
Fluorospectrometer
TYPE
NanoDrop™ 3300
BRAND
nd-3300
SKU
LINK
Note
Remember:
Ranges for high quality DNA
260:280 - 1.80-2.00
260:230 - 2.00-2.20
Assess DNA concentration with Qubit Fluorometer with DNA Broad Range (BR) assay.
Note
* Dillute 2 µL of DNA with water and use all 10 µL for the Qubit Assay.
Qubit™ dsDNA BR Assay KitThermo FisherCatalog #Q32853
Assess DNA quality on Agarose gel
a. Make 0.8- 1% agarose gel with 3 µL EtBr solution per 100mL of gel
Ethidium bromide [EB, EtBr]Bio Basic Inc.Catalog #EB0195.SIZE.1g
b. Mix equal parts loading dye and DNA sample and load into wells (leaving space for DNA ladder)
c. Add equal amount of ladder as loading dye + DNA to the first and last well
d. Run the gel (75-120v) for 00:45:00 to 01:00:00 or until samples have run 3/4 of the way through the gel
e. Visualize bands to assess size of DNA fragments
Note
What you are looking for is high quality DNA.
Most should stay in the well.
What you don't want to see is shearing of DNA, which will have a large blur down your entire well.
Also a thing to look for is a general smearing at the bottom of the gel, indicating protein contamination. If you have this, follow Part A in Step 18.
For reference genome sequencing or other applications where a high volume of DNA is required, tubes of the same sample can be combined. Be sure to check the concentration of the final sample.
For applications requiring very clean DNA, it may be helpful to perform additional chloroform:isoamyl washes (Step 12b). As this reduces final yield, it may be helpful to perform multiple DNA extractions of the same organism/sample.
