May 21, 2025
Version 2
Fluorescence assay for Enterovirus coxsackievirus A16 2A protease activity measurement V.2
- Charline Giroud1,
- Oleg Fedorov1
- 1Center for Medicines Discovery, University of Oxford, ASAP Discovery Consortium
- ASAP Discovery
Protocol Citation: Charline Giroud, Oleg Fedorov 2025. Fluorescence assay for Enterovirus coxsackievirus A16 2A protease activity measurement. protocols.io https://dx.doi.org/10.17504/protocols.io.q26g7186qgwz/v2Version created by Mary-Ann Xavier
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
We use this protocol and it's working
Created: February 13, 2025
Last Modified: May 21, 2025
Protocol Integer ID: 120175
Keywords: FRET assay, enzymatic assay, Enterovirus coxsackievirus A16, Picornaviridae , IC50 measurement, activity of viral protease, enterovirus coxsackievirus a16, viral protease, 2a protease activity measurement, sequence specific to the tested protease, cleavage of the peptide, protease activity measurement, detection of the fluorescence, tested protease, protein production protocol, fluorescence emission, fluorescence, protein production, protease, peptide, labelled peptide, assay, proximity of dabcyl
Funders Acknowledgements:
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)
Grant ID: U19AI171399
Disclaimer
The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.
Abstract
This protocol details the fluorescence assay for Enterovirus coxsackievirus A16 (CVA16) 2A protease activity measurement. This method is intended to measure the activity of viral proteases by using a specific labelled-peptide that allows the detection of the cleaved product. The substrate contains the cleavage-sequence specific to the tested protease and is labeled in C-terminal by the fluorophore Edans (ex 336 nm; em: 455 nm) and in N-ternimal by the quencher Dabcyl (ex 472 nm). In the case of a non-cleaved substrate, the proximity of Dabcyl to Edans prevents the emission and the detection of the fluorescence at 455 nm. The cleavage of the peptide by the protease allows Edans’ fluorescence emission and detection. This version we added the protein production protocol and the addgene ID.
Attachments
nyiwb5id7.docx
203KB
Materials
Reagents
- Assay buffer: Assay buffer: 25 millimolar (mM) HEPES pH 7.5, 150 millimolar (mM) NaCl, 10 millimolar (mM) glycerol,7 millimolar (mM) DTT, 5 millimolar (mM) EDTA, 1 millimolar (mM) TCEP (optional) and 0.05 % volume Tween-20 .
- Incubation: 01:00:00 at Room temperature .
- EV-A16 2A: Protein stocks were stored at -80 °C and used as 2x solution (5 micromolar (µM) , 2.5 micromolar (µM) final assay concentration) in assay buffer.
- Substrate: Dabcyl-KEALFQGPPQFE-Edans (LifeTein, USA) prepared as a stock solution at 10 millimolar (mM) in DMSO and used at 2x solution (20 micromolar (µM) , 10 micromolar (µM) final concentration assay concentration) in assay buffer.
- Positive control: Telaprevir (Pubchem CID 3010818), 25 micromolar (µM) top final assay concentration.
- Plates: Greiner, 384-well plate, black, small volume, non-binding #7840900
- Liquid handler: Echo® acoustic liquid handler (Beckman Coulter, USA).
- Plate reader: Pherastar FS, BMG Labtech (Germany), 350-460 FI optic module, the plate is read every 30 s for 2 hours and shacked during 5 s before the first reading.
Protocol materials
Enterovirus Coxsackievirus A16 2A proteaseaddgeneCatalog #228632
Protein expression and purification
The protein used in this assay was expressed and purified using the protocol bellow with the addgene. Enterovirus Coxsackievirus A16 2A proteaseaddgeneCatalog #228632
Protocol
CREATED BY
korvus.wang
CVA16 2A protease Assay
3h
This method is intended to measure the activity of viral proteases by using a specific labelled-peptide that allows the detection of the cleaved product. The substrate contains the cleavage-sequence specific to the tested protease and is labeled in C-terminal by the fluorophore Edans (ex 336 nm; em: 455 nm) and in N-ternimal by the quencher Dabcyl (ex 472 nm). In the case of a non-cleaved substrate, the proximity of Dabcyl to Edans prevents the emission and the detection of the fluorescence at 455 nm. The cleavage of the peptide by the protease allows Edans’ fluorescence emission and detection.
Asset URL:
Reagents and equipment
Assay buffer: 25 millimolar (mM) HEPES pH 7.5, 150 millimolar (mM) NaCl, 10 millimolar (mM) glycerol,7 millimolar (mM) DTT, 5 millimolar (mM) EDTA, 1 millimolar (mM) TCEP (optional) and 0.05 % volume Tween-20 .
Incubation: 01:00:00 at room temperature.
CVA16 2A protease: protein stocks were stored at -80C and used as 2 x solution (10 micromolar (µM) , 5 micromolar (µM) final assay concentration) in assay buffer.
Positive control: Telaprevir (Pubchem CID 3010818), 25 micromolar (µM) top final assay concentration.
Substrate: Dabcyl-RDKITTLGKFGQDE-Edans (LifeTein, USA) prepared as a stock solution at 10 mM in DMSO and used at 2x solution 20 micromolar (µM) (10 micromolar (µM) final concentration assay concentration) in assay buffer.
Plates: Greiner, 384-well plate, black, small volume, non-binding #7840900
Liquid handler: Echo‱ acoustic liquid handler (Beckman Coulter, USA).
Plate reader: Pherastar FS, BMG Labtech (Germany), 350-460 FI optic module, the plate is read every 00:00:30 for 02:00:00 and shacked 00:00:05 before each reading.
3h 0m 35s
CVA16 2A protease IC50 Measurement
3h
Add 10 µL of 2x protein 10 micromolar (µM) solution to each well containing the compounds to be tested previously dispensed onto the plate.
Incubate the mix for 01:00:00 at Room temperature and initiate the enzymatic reaction by the addition of 10 µL of 2x (20 micromolar (µM) ) substrate solution using the plate reader injector.
1h
Read the fluorescence intensity at 350/460 nm every 00:00:30 for 02:00:00 in kinetic mode, which includes a shaking step of the plate before each measurement.
2h 0m 30s

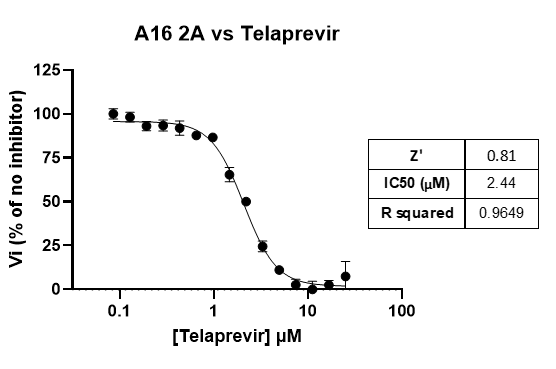

Calculate the IC50 by plotting the initial velocity against various concentrations of tested inhibitor by using a four-parameter dose−response curve in Prism (v8.0) software.
Calculate the mean (μ) and the standard deviation (σ) of fluorescence intensity and then calculate the signal-to-background ratio and the Z' or Z-factor. (s: signal; c: control).
