2 Methods for DNA Adsorption on a Mica Substrate for AFM Imaging in Fluid
- Philip J. Haynes1,2,3,
- Kavit H. S. Main1,4,
- Alice Pyne5
- 1London Centre for Nanotechnology, University College London, London WC1H 0AH, UK;
- 2Molecular Science Research Hub, Department of Chemistry, Imperial College London, W12 0BZ, UK;
- 3Department of Physics and Astronomy, University College London, London, WC1E 6BT, UK;
- 4UCL Cancer Institute, University College London, London, WC1E 6DD, UK;
- 5Department of Materials Science, Sir Robert Hadfield Building, University of Sheffield, S1 3JD
Protocol Citation: Philip J. Haynes, Kavit H. S. Main, Alice Pyne 2020. 2 Methods for DNA Adsorption on a Mica Substrate for AFM Imaging in Fluid. protocols.io https://dx.doi.org/10.17504/protocols.io.bncjmaun
License: This is an open access protocol distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited
Protocol status: Working
We use this protocol and it's working
Created: October 12, 2020
Last Modified: October 28, 2020
Protocol Integer ID: 43115
Keywords: Atomic force microscopy, AFM, DNA, Supercoiling, Double helix, DNA-protein binding, atomic force microscopy of dna, atomic force microscopy, dna adsorption, microscopy technique, afm imaging in fluid, sample surface at nanometre resolution, afm imaging, methods for dna, bound dna, molecular complexes in an aqueous environment, protein interaction, mica substrate, molecular complex, interactions with protein, substructure of single molecule, dna, single molecule, nanometre resolution, application of afm, protein, adsorption, tertiary structure of surface, sample surface, sharp probe,
Abstract
This is part 2 of the "Atomic Force Microscopy of DNA and DNA-Protein Interactions" collection of protocols.

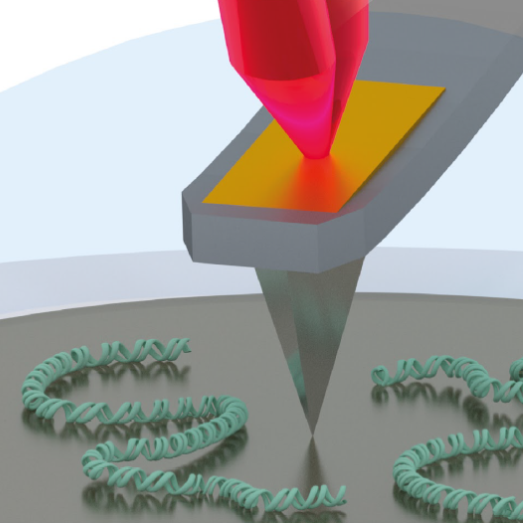

Collection Abstract: Atomic force microscopy (AFM) is a microscopy technique that uses a sharp probe to trace a sample surface at nanometre resolution. For biological applications, one of its key advantages is its ability to visualize substructure of single molecules and molecular complexes in an aqueous environment. Here, we describe the application of AFM to determine the secondary and tertiary structure of surface-bound DNA, and it’s interactions with proteins.
Guidelines
Figure 2 shows DNA plasmids adsorbed on a mica substrate by both the divalent cation (Fig. 2a) and poly-L-lysine (Fig. 2c) methods. Both methods yield stable DNA adsorption on the substrate for imaging by AFM.
Fig. 2 High-resolution topographic images of DNA acquired by PeakForce Tapping mode (protocol 4.). The divalent cation method (protocol 2., method 2.1) is used to adsorb (a) DNA plasmids and (b) 339 base-pair DNA minicircles. In a, the two strands of the DNA double-helix are captured. Inset: a higher resolution image digitally straightened and overlaid with a cartoon representation of the B-DNA crystal structure. Color scales: 2.5 nm (main), 1.2 nm (inset). In b, defects and disruptions in the canonical B-form DNA are observed (red triangles), as a step-change in the angle of the helix. Color scale (scale bar in a): 2.5 nm [ref. 11, with permission]. (c) A DNA plasmid adsorbed onto PLL1000–2000-functionalized mica (protocol 2., method 2.3) where the chains of poly-L-lysine making up the underlying substrate are resolved. Colour scale: 8 nm [adapted from ref. 31, with permission].
Troubleshooting
Safety warnings
For hazard information and safety warnings, please refer to the SDS (Safety Data Sheet).
The three Methods for DNA Adsorption on a Mica Substrate for AFM Imaging in Fluid are outlined below:
2.1 DNA Adsorption Using Divalent Cations11 steps
2.1 DNA Adsorption Using Divalent Cations
30m
Note
Divalent cations (in this case Ni2+) can be used to overcome the electrostatic repulsion between DNA and mica, thus facilitating DNA adhesion to the mica, which can also be tuned via the cationic concentration in the solution as outlined below.
Immediately before DNA adsorption, cleave a 6 mm mica disc that has been prepared as described in protocol 1.
Cover the freshly cleaved mica with 20 µL nickel adsorption buffer (see Note 10).
Add 4 µL DNA (1 ng/μl , see Note 11) and distribute evenly in the meniscus by gently purging.
Adsorb for 00:30:00 . Then gently exchange the buffer to the nickel imaging buffer four times to remove any unbound DNA.
30m
Gently exchange the buffer to the nickel imaging buffer to remove any unbound DNA. (1/4)
Gently exchange the buffer to the nickel imaging buffer to remove any unbound DNA. (2/4)
Gently exchange the buffer to the nickel imaging buffer to remove any unbound DNA. (3/4)
Gently exchange the buffer to the nickel imaging buffer to remove any unbound DNA. (4/4)
Add sufficient nickel imaging buffer to form a droplet covering the sample (dependent on the AFM system, see Note 12).
Mount sample on AFM.
